TDG Series Bucket Elevator

TDG SERIES BUCKET ELEVATOR

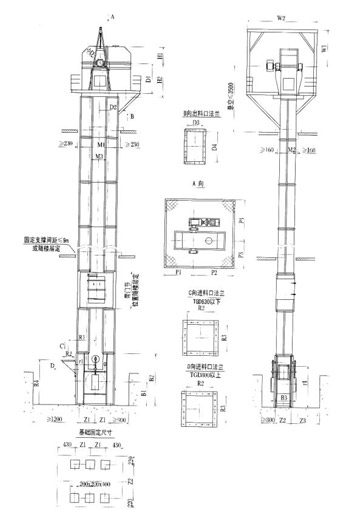

TDG type belt bucket elevator is a new generation advanced elevator globally. TDG elevator especially suits for vertical lifting of dry powder material or small granular materials, etc in industries of building materials, metallurgy, chemical, food, electricity industry and others. It’s an ideal lifting products for the raw material of NSP cement plant, raw material homogenization silo, cement storage silo.

The performance and characteristics of TDG series chain elevator：

High lifting height: highest height of single machine can up to 100 m.
Big capacity: the biggest capacity can up to 950 m3 / H.
Materials temperature requirement: up to 120°.
The bucket allocation are intensive, continuous materials receipt and and continuous materials discharge.
Long service life: good reliability, trouble-free time is more than 60,000 hours.
low power consumption: save energy consumption by more than 30% compared with chain elevator for its low machine weight.
Low maintenance cost: with convenient operating and maintenance and less wearing parts, the maintenance cost is reduced by around 80% compared with normal elevator.
With high accuracy design, high strength structure and beautiful appearance.

Models Specifications			TDG 315P	TDG315	TDG 400	TGD 500	TDG 630	TDG 800	TDG 1000	TDG 800	TDG 1000	TDG 1250	TDG 1400	TDG 1600
Bucket Specifications	Bucket Width（mm）		315	400	400	500	630	800	1000	800	1000	1250	1400	1600
Bucket Specifications	Bucket Volume（dm3）		6.6	10.0	14.5	18.0	29.3	37.3	46.6	46.0	58.0	72.7	99.0	114.0
Bucket Speed（m/s）			1.31		1.50		1.6			1.98
Diameter of Cylinder（mm）			630		800		1000			1250
Theoretical Capacity （m3/h）	Space Between Buckets（mm）	280	111	168
		320	97	147	244	303
		360	86	131	217	270	460	585	731
		400			195	243	414	527	658	815	1028	1289
		440			178	221	376	479	598	741	935	1172	1596	1837
		480					345	439	548	679	857	1074	1463	1684
		520					318	405	506	627	791	992	1350	1555
		550					301	383	478	593	748	937	1277	1470
